Clearaudio Nano MM/MC V2 Phonostage
TECHNICAL SPECIFICATIONS
Nagu uus. Komisjonikaup. Hind ei sisalda käibemaksu.
- Amplification @ 1 kHz 34 dB to 48 dB (MM mode)
- 54 to 68 dB (MC mode)
- Input impedance 47 kOhm / 220 pF / MM mode
- Individual / User / MC mode

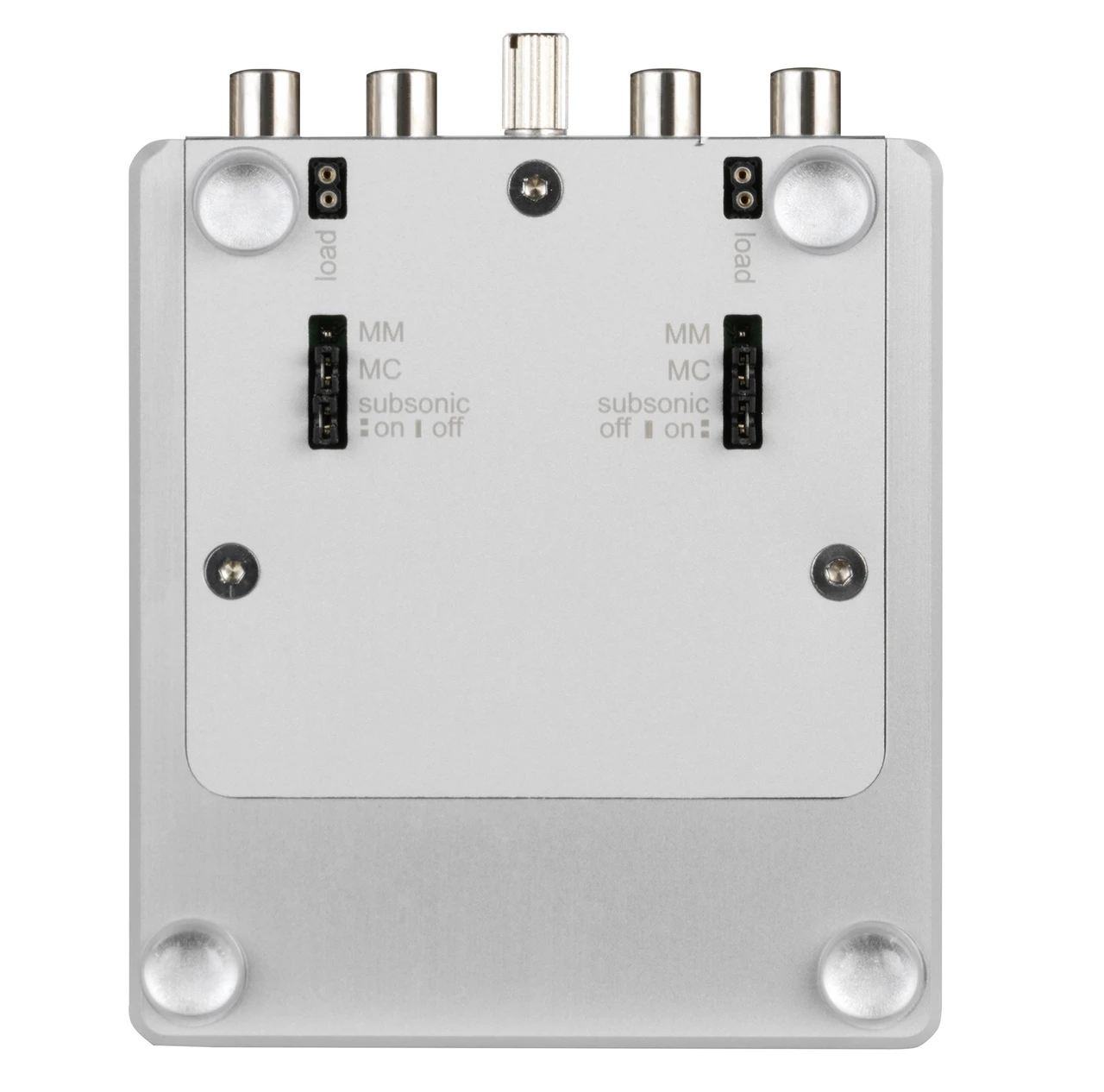

- MM / MC input switchable by jumper (at bottom)
- Subsonic Filter switchable by jumper (at bottom)
- RIAA delay time: 75 μs / 318 μs / 3180 μs
- RIAA accuracy ± 0.4 dB @ 20 Hz - 50 kHz
- THD < 0,006% MC ("A" weighted @ 1 kHz / -1 dB @ Max)
- Headroom 18 dB / MC
- Signal to noise ratio 70 dB ("A" Weighted)
- 81 dB ("A" Weighted)
- Channel separation > 80 dB @ 1 kHz / opposed channel hot-wired
- Max. output voltage 10 V eff. (1 kHz)
- Power supply ± 18 V DC / 300 mA (external power supply)

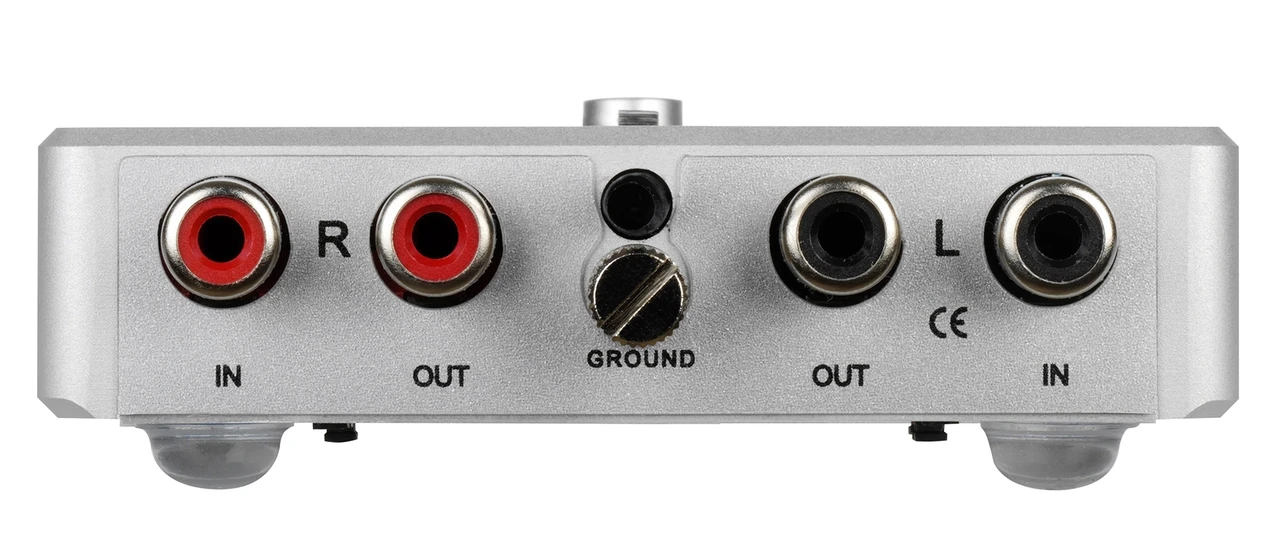

- Input / Outputs unbalanced (RCA)
- Power consumption Max. consumption: 2.3 Watt
- Consumption in operation: 2.3 Watt
- Standby mode: < 0.3 Watt
- Off mode: 0.0 Watt
- Total weight 500 gram
- Dimensions (W/D/H in mm) 85 x 106 x 25
